Create and Use a Popup

Popups are frequently used to ask for end-user input or to present information. This provides a better experience to end-users because they are kept in context while entering the input.

In mobile apps, use a popup as follows:

  1. Drag the Popup widget to the screen;
  2. Add a variable of Boolean type to the screen to control the popup visibility (you can use it to show or hide the popup);
  3. Set the Show Popup property with the variable. This will effectively toggle the popup according to the variable value;
  4. Implement logic in the screen to display the popup by assigning True to the variable;
  5. Implement the popup content.

In web apps, use a popup as follows:

  1. Enclose the screen widget that opens the popup inside a link or button and name the link or button;
  2. Create a new screen for the popup. Set the layout of the screen to LayoutsOther\Layout_Popup;
  3. Back to the previous screen, set the link’s Destination to the popup screen;
  4. Use the search bar to look for the Popup_Editor and drag it to the screen;
  5. Set the Popup_Editor LinkOrButtonWidget property with the Id runtime property of the link or button;
  6. Choose (New Screen Action) in the Popup_Editor OnNotify Destination property. Since we don’t want to run any logic, leave the action’s flow empty;
  7. Implement the popup. To close it, use the Popup_Editor_Close action.

Example in a Mobile App

In the GoOut application, to find, review, and rate places, we want to display a popup to end-users to confirm they want to send the review report when they think a review as abusive language.

  1. Open the ReviewInfo block, the block that displays the review details;
  2. Drag the popup widget to the screen next to the icon that once clicked;
  3. Add a local variable to the screen and name it ShowConfirmReport. Set its data type as Boolean;
  4. Set the Show Popup property of the popup to the new variable. The popup will be displayed according to the variable’s value;
  5. In the screen, add a ReportOnClick client action to show the popup (i.e. ShowConfirmReport is True);
  6. Set this action to the OnClick event of the icon that reports the review;
  7. Create the popup content as the image below:
  8. To hide the popup after clicking one of its options, implement the logic to set the variable ShowConfirmReport to False in the ReportOnClick action.

Example in a Web App

In the GoOutWeb application, to find, review, and rate places, each review can have photos associated. These photos are shown as thumbnails along with the review comments and a rating in a block called ReviewInfo. We want to preview the photo in its original size without losing the context of the place and the reviews.

  1. Open the ReviewInfo block;
  2. Enclose the image thumbnail in a link. Name the link as ImageLink;
  3. Create the Popup_PhotoPreview screen and set the layout of the screen to LayoutsOther\Layout_Popup. This screen will display the popup content;
  4. Add the PhotoId input parameter to get and display the image;
  5. Back to the ReviewInfo block, set the link’s Destination to Popup_PhotoPreview and define input parameter with the id of the photo do display in the popup;

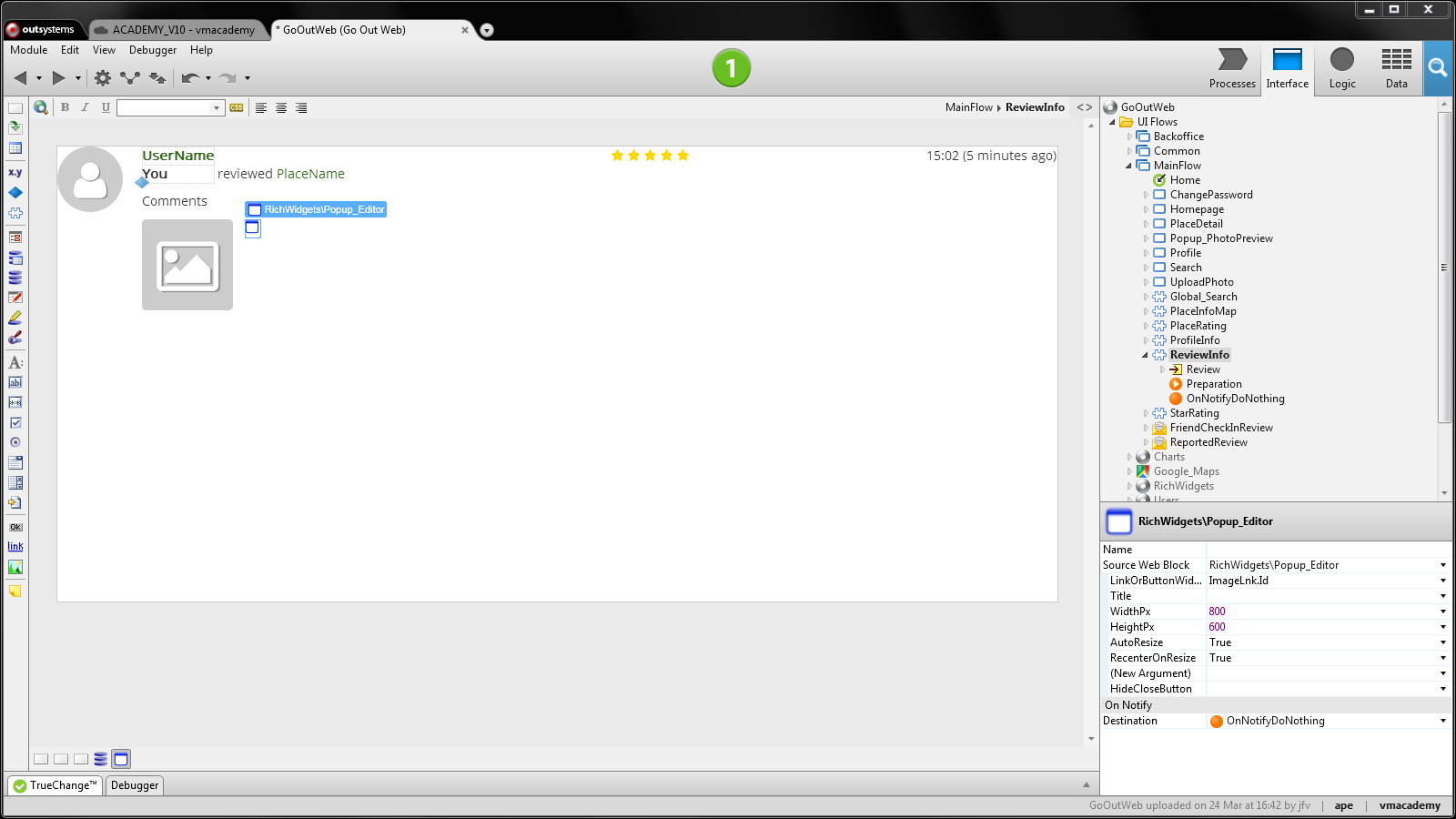

  6. Use the search bar to look for the Popup_Editor block and drag it to the screen, next to the image;
  7. Set the Popup_Editor LinkOrButtonWidget property to ImageLink.Id;
  8. Choose (New Screen Action) in the Popup_Editor OnNotify Destination property. Since we don’t want to run logic in response to end-user interaction on the popup, leave the flow of the created action empty.
